PTFE steel lining 90 degree standard elbow
PTFE steel lining 90 degree standard elbow
- Information

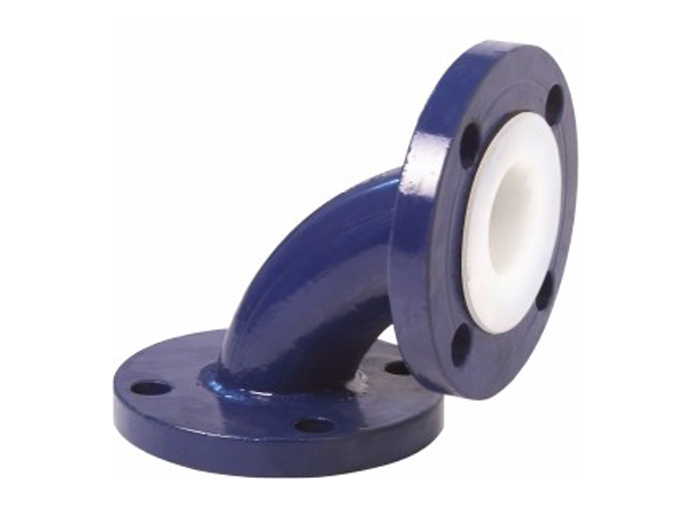

PTFE Lined 90°Elbow

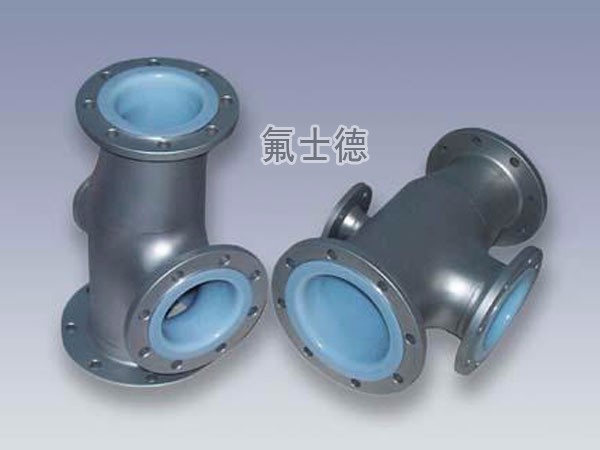

Fluorine-lined three-way process classification:
Molding process: a method in which a certain amount of fluororesin powder is added into a metal mold and cured by heating and pressurization.
Winding process: the PTFE strip is wound on the mold by hand or mechanical method, demoulded, then inserted into the steel tube, and the method of flanging
Isobaric process: a method in which a certain amount of fluororesin powder is added to a metal mold and placed in an isostatic autoclave.
Roll coating process: a rotary sintering method
Lining material: PTFE, PFA, FEP, PO, PP, etc.
Flange: ANSI 150LB, national standard, etc.
Unit: mm
